19' Kiosk Unit
Our largest kiosk unit delivers a complete retail storefront experience. Features glass facade, commercial entry, HVAC, and full electrical—ready for permanent retail operations.
19' × 8' × 9'6"
139 sq ft
12' Glass
Included
Key Benefits
- True retail storefront with glass facade
- Climate controlled with included HVAC
- Security shutters and alarm prep
- Fully customizable interior and exterior
- Free Delivery 100mi+
- 5-Year Warranty
- Expert Support
Your Complete Retail Solution
The 19′ Kiosk Unit is our flagship retail solution, delivering everything you need for a permanent storefront in a modular, relocatable package.
With a 12′ glass storefront, commercial entry door, included HVAC system, and retail-grade lighting, this unit provides a shopping experience indistinguishable from traditional brick-and-mortar stores.
Perfect for shopping centers, downtown retail districts, mixed-use developments, and anywhere you need a professional retail presence without the cost and timeline of traditional construction.
What's Included
- 12' glass storefront
- Commercial entry door
- 2-ton HVAC system
- Track lighting
- 400A electrical
- Security shutters
- Signage area
- POS/network prep
Technical Specifications
Dimensions & Details
| External Length | 19′ 0″ (5.79m) |
| External Width | 8′ 0″ (2.44m) |
| External Height | 9′ 6″ (2.90m) |
| Internal Length | 18′ 6″ (5.64m) |
| Internal Width | 7′ 6″ (2.29m) |
| Internal Height | 8′ 6″ (2.59m) |
| Storefront Window | 12′ × 4′ (3.66m × 1.22m) |
| Entry Door | 36″ commercial glass |
| Floor Area | 139 sq ft (12.9 m²) |
| Tare Weight | 4,800 lbs (2,177 kg) |
| Electrical | 400A panel ready |
| HVAC | 2-ton mini-split included |
Construction Details
| Frame | Heavy-duty steel |
| Insulation | R-19 walls/ceiling |
| Interior Finish | Drywall ready |
| Floor | Commercial grade |
Dimensions & Details
Contact our team for detailed specifications, CAD drawings, and custom configuration options.
Full Storefront Design
12' glass storefront with commercial entry door for true retail experience.
Climate Controlled
Includes 2-ton mini-split HVAC system for year-round comfort.
Retail Lighting
Track lighting system with dimmable LED fixtures throughout.
Tech Ready
Pre-wired for POS systems, security cameras, and WiFi.
Security Features
Roll-down security shutters and alarm system prep.
Fully Customizable
Interior and exterior finishes to match your brand.

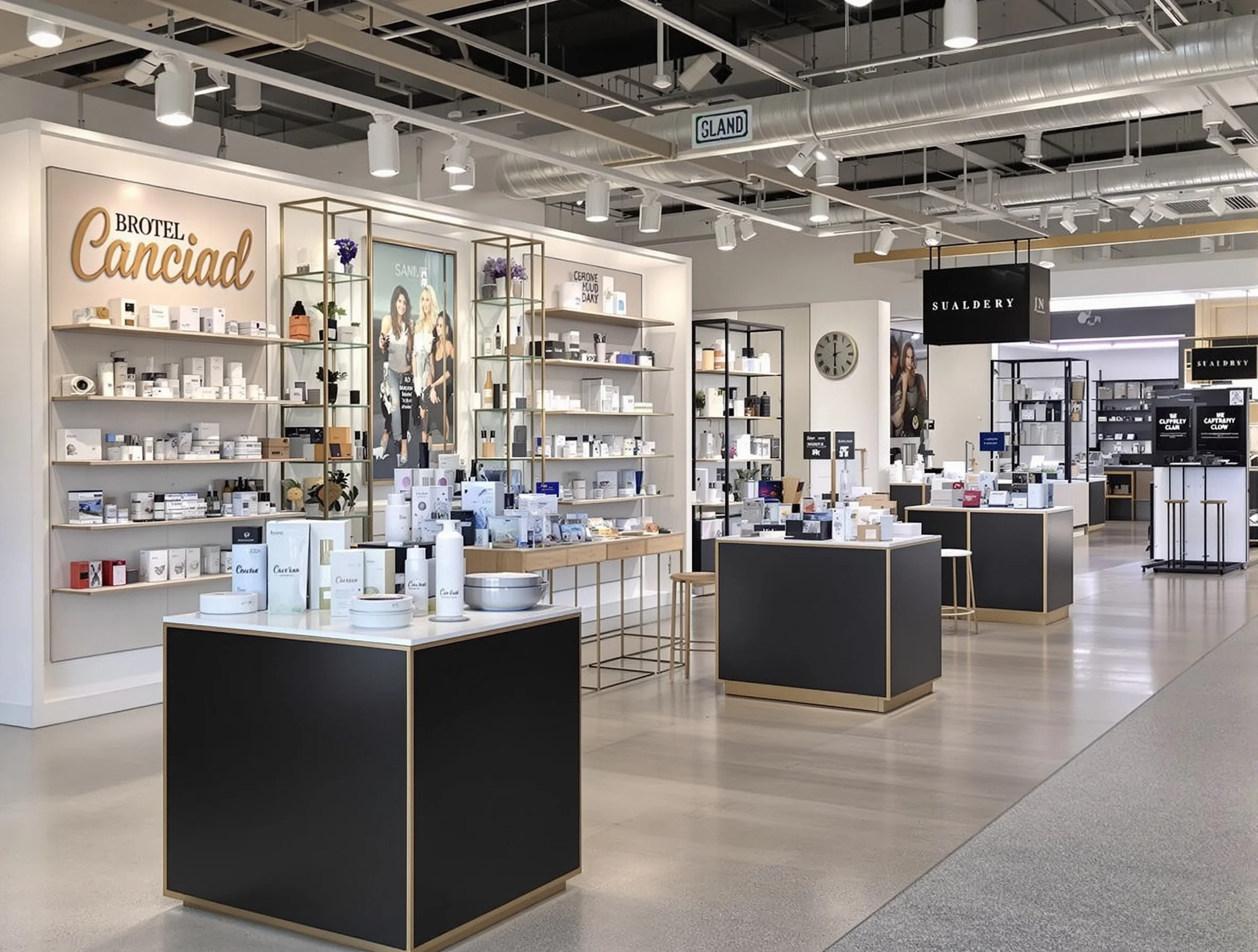

Permanent Retail
Full-featured retail store for shopping centers, downtown districts, and mixed-use developments.
Brand Showrooms
Showcase products in a dedicated branded environment at events or permanent locations.

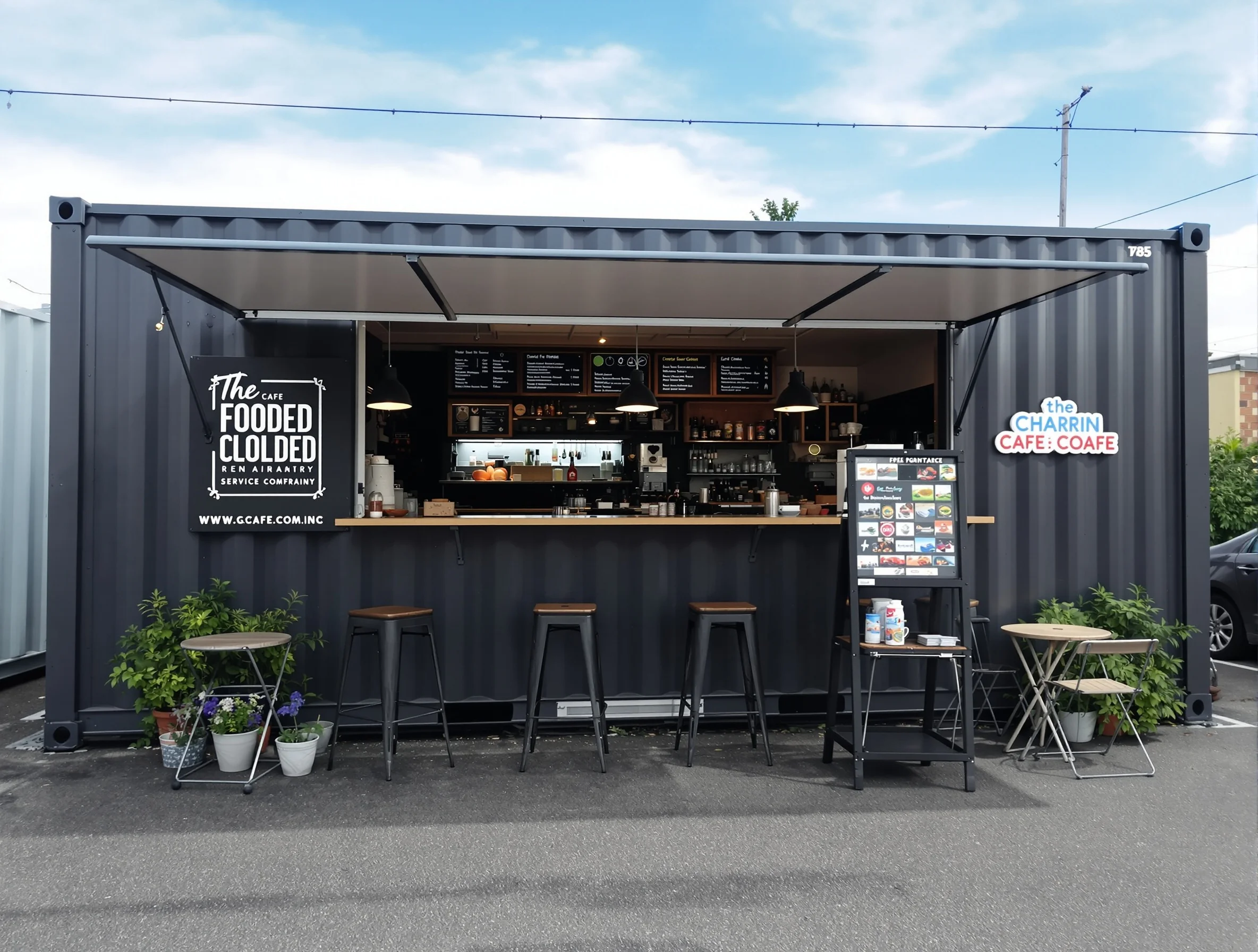

Restaurant/Cafe
Full-service dining with kitchen, seating area, and customer service counter.
